Solutions
Every AIC machine starts from the same foundation: sub-micron motion, real-time optical feedback, and vision-guided process control. Below are our core capabilities and the production platforms built on them. Don't see your exact product? Most of what we ship is custom — talk to an engineer about your stack.
Core Capability
Core Capability

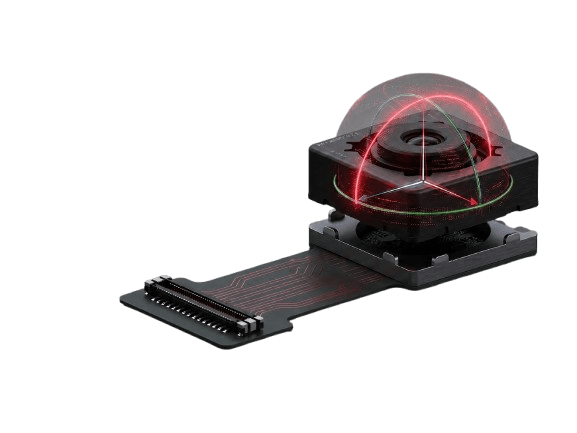

The fundamental active/passive alignment cell: align and bond one optical component to another — lens to sensor, lens to barrel, prism to housing — with 6DoF motion and vision or optical-signal feedback.
Camera Module AA Demo ↗
Core Capability

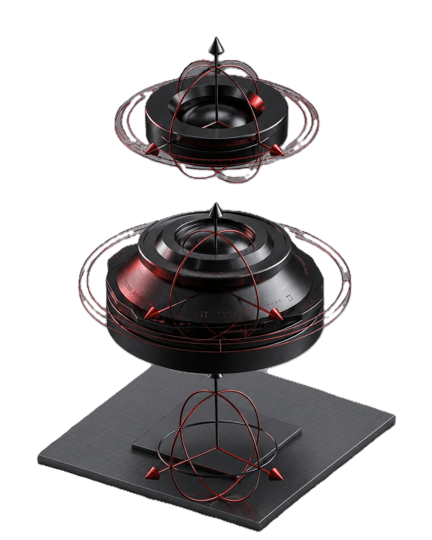

Simultaneous alignment of three-element structures such as optics stack + bracket + beamsplitter. Manages inter-component tolerance chains so the final assembly, not just each joint, hits spec.
Multi-Group Lens Demo ↗
Core Capability

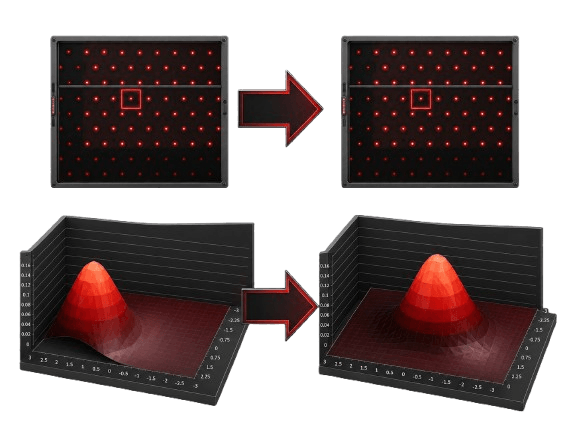

Our platforms close the alignment loop around your instrument of choice — optical power meters, beam profilers, SWIR cameras, PSG/PSA polarization systems, and more — so alignment converges on the metric that actually matters to your product.
Photonic Alignment Demo ↗
Core Capability
Integrated multi-sensory contactless metrology for alignment: up to five simultaneous vision perspectives fused with optical and geometric measurement feedback — datum-free alignment of micro-optics and lighting modules, with no probing or fixturing to damage or distort the part.
5-Camera Metrology Demo ↗
Core Capability

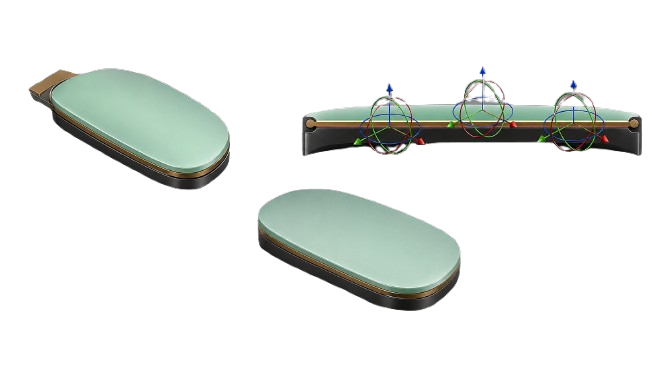

Precision positioning of light engines, waveguides, and push/pull lens groups, including active control of air gaps and carrier alignment — the critical geometry inside AR display modules.
Light Engine Alignment Demo ↗
Core Capability

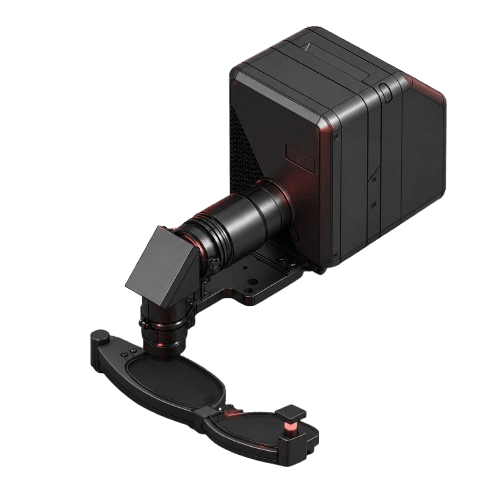

Virtual-image-distance active alignment performed through the waveguide itself, combined with near-eye-display testing — so AR modules are aligned and verified against what the user's eye will actually see.
Assembly Equipment
Application Solutions
Colorimeter-guided 6DoF alignment for micro-LED panels, with integrated dispensing, pick-and-place, and dual material-handling systems delivering +30% throughput. ±0.5 μm linear / ±0.005° angular repeatability. RGB panel AA available as a custom design.
Application Solutions
Active and passive alignment platforms for AR light engines and optical modules, with integrated AOI and dispensing. Configured per product — from R&D cell to automated line.
Application Solutions
Inline AA for camera modules targeting optical-axis accuracy, SFR performance, and high throughput. Field-proven in notebook and consumer camera-module mass production since 2019.
Application Solutions
Fully automated assembly built around simultaneous multi-angle vision — for parts that can't be touched, fixtured, or aligned from a single view. The multi-perspective cameras can be swapped for other metrology tools per your requirements.
Application Solutions
Our flagship for complex stacked optics: up to 15 degrees of freedom aligning 2+ lens groups in a single system, introduced 2022. When a lens barrel can't hold the tolerance chain, MLAA holds it in free space.
Application Solutions
A compact, customizable AA cell — proven configuration: notebook camera modules assembled directly on connector boards. A practical entry point for new products and lower volumes.
Application Solutions
Half-automatic platform with collimator-based optimization for wide-field-of-view modules — automotive and surveillance cameras where distortion and corner performance dominate the spec.
Application Solutions
Two alignment sites on one panel-level platform, sharing handling and metrology — engineered for throughput without duplicating the whole machine.
Application Solutions
Screw-type lens focusing, dispensing, UV curing, and light/dark-field image testing on one 4-station rotary — each module is focused, locked, and verified in a single machine. Estimated takt time ~24 seconds; the front cover opens for automated pick-and-place integration.
Testing Equipment
Testing Equipment Solutions
End-of-line camera testing on two parallel rails: relay lens, test charts, bright/dark field, and collimator stations in one footprint.
Testing Equipment Solutions

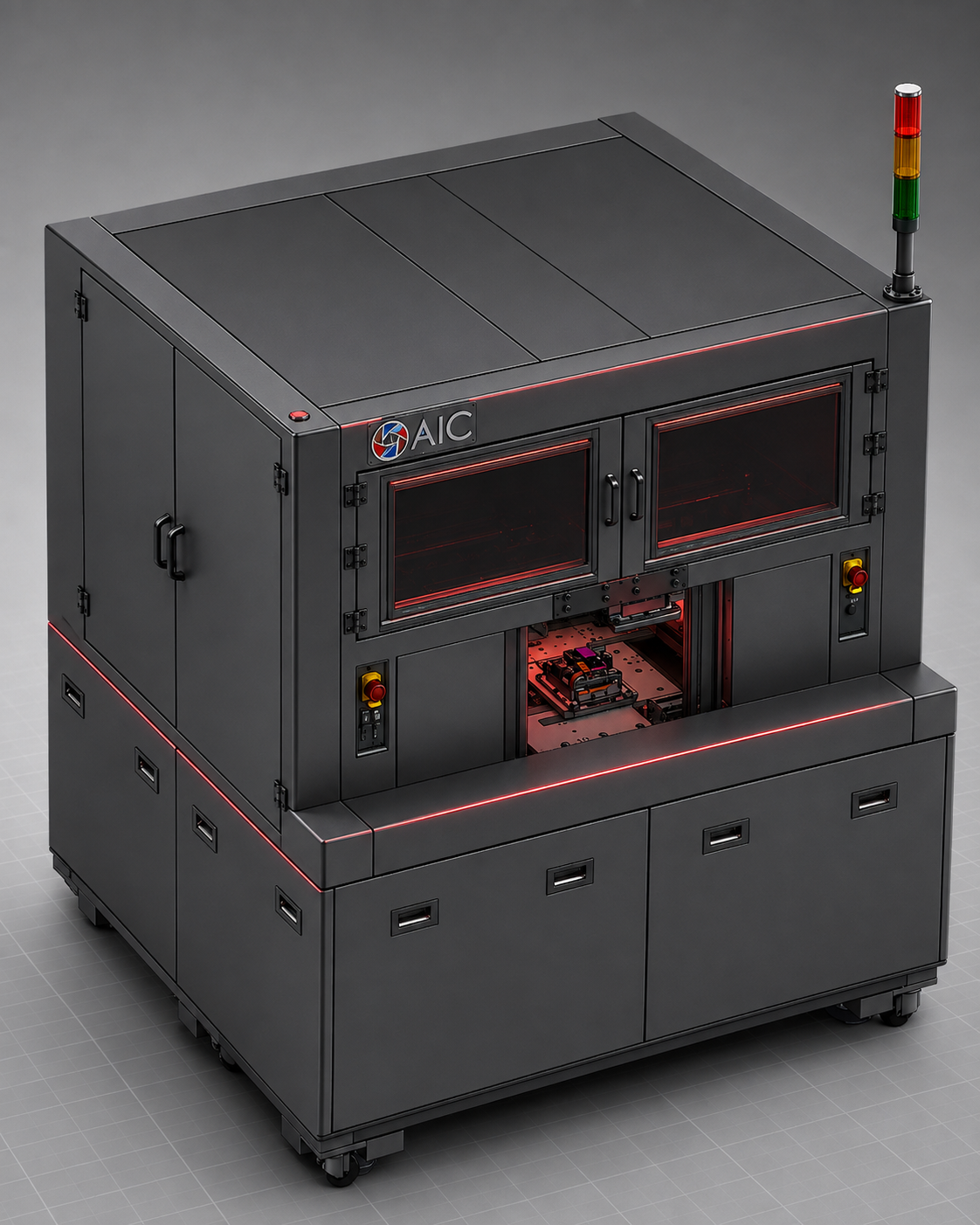

Complete focus-adjust automation: loading, focus optimization, dispensing, UV cure, and final test in one closed flow — no operator between focus and lock.
Testing Equipment Solutions

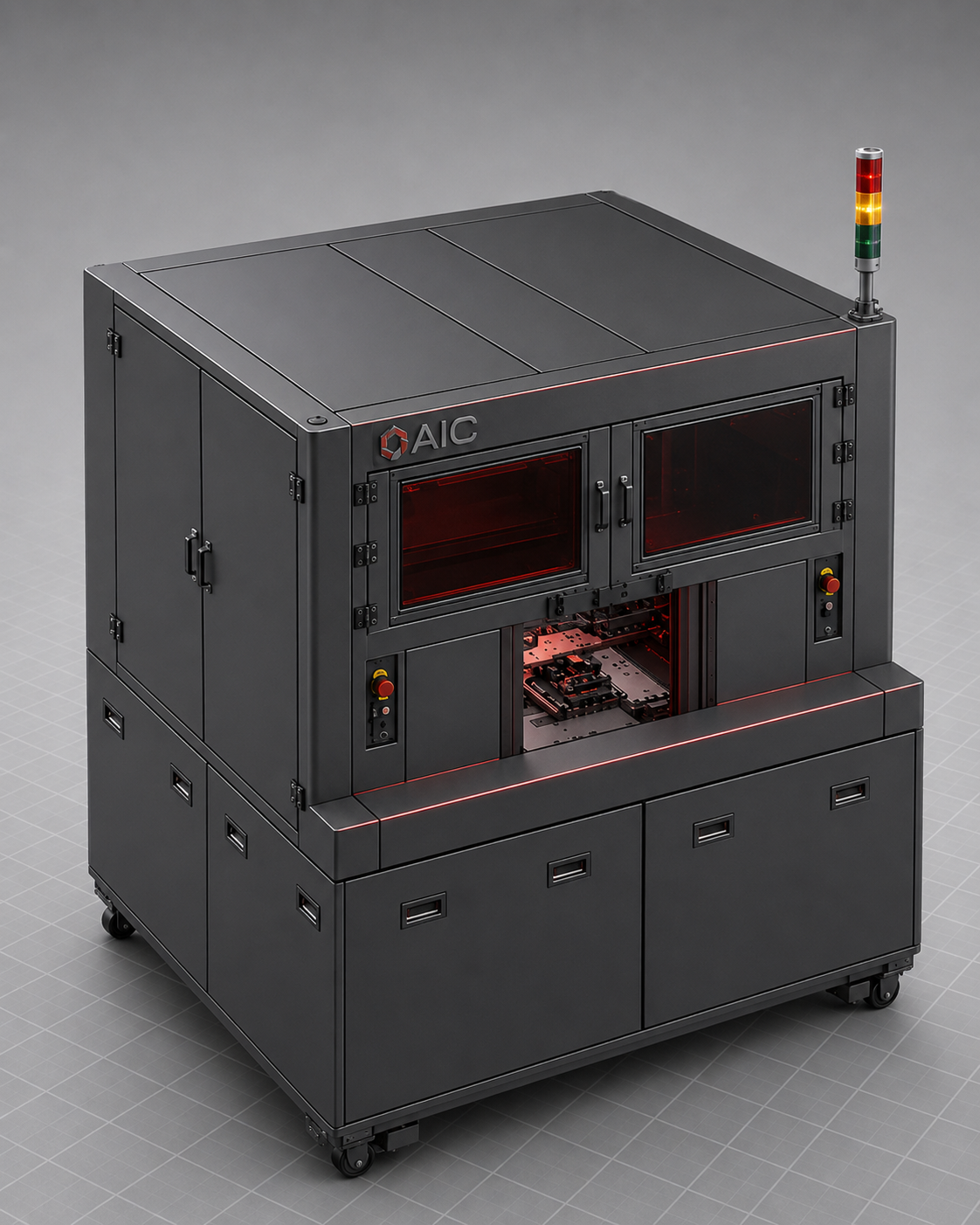

Four end-of-line tests in one rotary footprint: day-mode SFR (D65), night-mode SFR (IR850 or IR940), and light/dark-field image testing on a 4-station index table — testing takt time under 15 seconds per module, with optional automated pick-and-place loading.
